TCX – The intelligent touch control for Air Curtains

With the TCX control system, you can control Teddington Air Curtain systems efficiently, conveniently and flexibly – regardless of whether it is a single system or a complex system with several units. The TCX family stands for intuitive operation, fast configuration and seamless integration into modern building automation systems.

Intuitive operation – easy installation

The TCX control system is the result of decades of experience in Air Curtain technology and continuous further development. It offers a modern solution for energy-efficient, convenient and intelligent building entrances – reliable, versatile and state-of-the-art.

As a centralised control unit, the TCX can control up to 64 units in parallel or individually. If required, it can also be operated via a single control panel. This allows a wide range of configurations to be realised. With the optional Ethernet extension, the TCX and TCX-E can be integrated into your building automation system with ModBus and BACnet via TCP/IP.

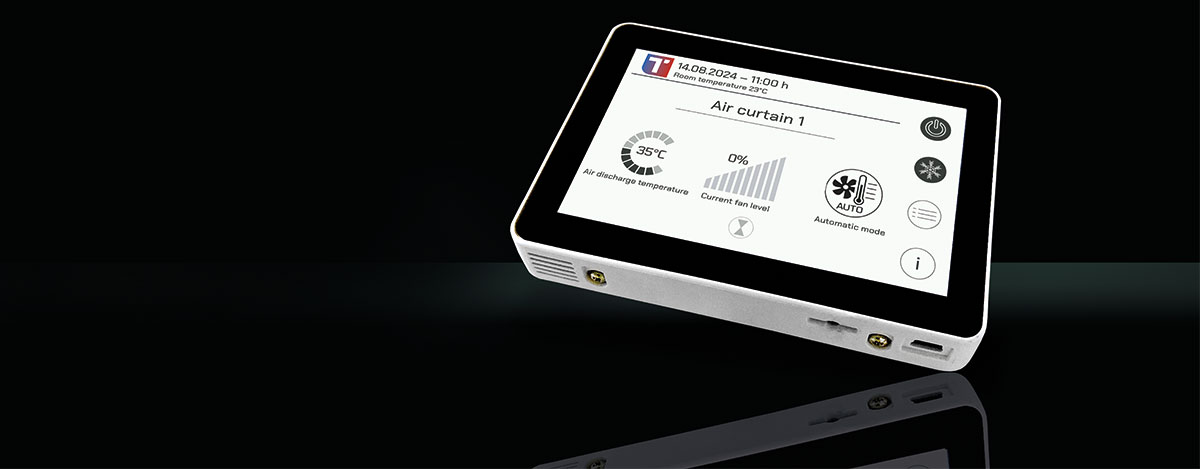

All controllers in the Teddington TCX family feature a modern touch display and a clearly structured user interface. Settings can be adjusted in real time – temperature, air volume or operating mode can be configured in just a few simple steps. Updates and settings can be uploaded reliably via an integrated micro SD slot.

Three variants – the right solution for every requirement

TCX

For hot water-heated Air Curtain systems - intuitive to operate, powerful and versatile.

Instruction TCX

5-stage air volume control for AC fans, infinitely variable for EC fans

External release via the building management system

Simple change between summer and winter operation

Simple change between manual and automatic operation

Integrated room temperature sensor

Operation depending on the room temperature via room thermostat or room sensor

Potential-free operating and fault signal for monitoring the Air Curtain system by the building management system

Integrated weekly timer

Run-on function

Filter monitoring

Operating hours counter

Fault memory

Speed control via the building management system

Discharge temperature control

Multi-master function

Optional Ethernet extension for controlling all essential device functions via the building management system

Key lock

Micro SD slot for transferring software updates or settings data

10 user languages

Control panel dimensions: 132 x 91 x 19 mm

TCX-E

The right control unit for Air Curtain systems with electric heating – powerful and intuitive to operate.

Instruction TCX-E

3-stage air volume control for AC fans, infinitely variable for EC fans

External release via the building management system

Simple change between summer and winter operation

Simple change between manual and automatic operation

Integrated room temperature sensor

Operation depending on the room temperature via room thermostat or room sensor

With EC fans, potential-free operating and fault signal for monitoring the Air Curtain system by the BMS, with AC via 0-10 volt signal

Integrated weekly timer

Run-on function

Fault memory

Speed control via the building management system

Multi-master function

Optional Ethernet extension for controlling all essential device functions via the building management system

Key lock

Micro SD slot for transferring software updates or settings data

10 user languages

Control panel dimensions: 132 x 91 x 19 mm

TCX Lite

Compact control unit for hot water-heated Air Curtain systems – in socket format 55 × 55 mm, ideal for installation in flush-mounted sockets and switch ranges.

Instruction TCX Lite

5-stage air volume control for AC fans, infinitely variable for EC fans

External release via the building management system

Simple change between summer and winter operation

Simple change between manual and automatic operation

Potential-free operating and fault signal for monitoring the Air Curtain system via the BMS

Run-on function

Fault memory

Speed control via the building management system

Key lock

Micro-USB connection for transferring software updates

10 user languages

Control panel dimensions: 55 x 55 x 43 mm

Networkable and future-proof

With the optional Ethernet extension, the TCX control unit can be easily integrated into the building management system. The common Modbus TCP/IP and BACnet protocols are supported, enabling smooth integration into existing automation systems.

TCX Modbus RTU: Convenient integration and control of the Air Curtain unit via the building management system

Using the Modbus RTU (Remote Terminal Unit) communication protocol, Teddington Air Curtains can be controlled without the additional use of a TCX control panel. The Air Curtain is integrated into the building management system and can be conveniently operated via the BMS. Modbus RTU supports various function codes that define specific actions, such as reading or writing registers or querying status information.

RTU is a serial communication variant that usually runs via RS-485 or RS-232 interfaces. It uses a binary data representation to transfer information between devices. Using write/read commands, the controlled Air Curtain can be operated individually according to customer requirements and the operating parameters can be read out.

Teddington can accept a customised pre-configuration ex works so that all the required parameters (such as the required fan stage or the after-run time of the Air Curtain) are already implemented.

A Teddington TCX control panel and a TCX Ethernet board are not required when using the Modbus RTU configuration. Only a TCX board is required, which provides the Modbus RTU interface.
