Charisma
The iconic column-shaped design air curtain
The Charisma is a vertically installed design air curtain for entrance areas where effective air separation and architectural design are equally important. Its distinctive column shape is designed to be positioned visibly beside the door, making it particularly suitable for representative entrance halls, showrooms, offices and administrative buildings.
The patented CONVERGO® pressure chamber nozzle system generates a stable, precisely directed air stream that reduces air exchange between indoor and outdoor areas. This can reduce heating and cooling losses as well as draughts around the entrance.
Depending on the door width and power level, the Charisma can be installed on one or both sides of the doorway. A single unit can be used for door widths of up to 3.00 metres, while two units can cover door widths of up to 6.00 metres. Different unit heights, finishes and colours allow the air curtain to be adapted to the specific entrance situation and architecture.
Precisely directed airflow for effective air separation while requiring a lower air volume than conventional air curtain systems.
Effectiveness and reliability
Designed for cost-effective operation

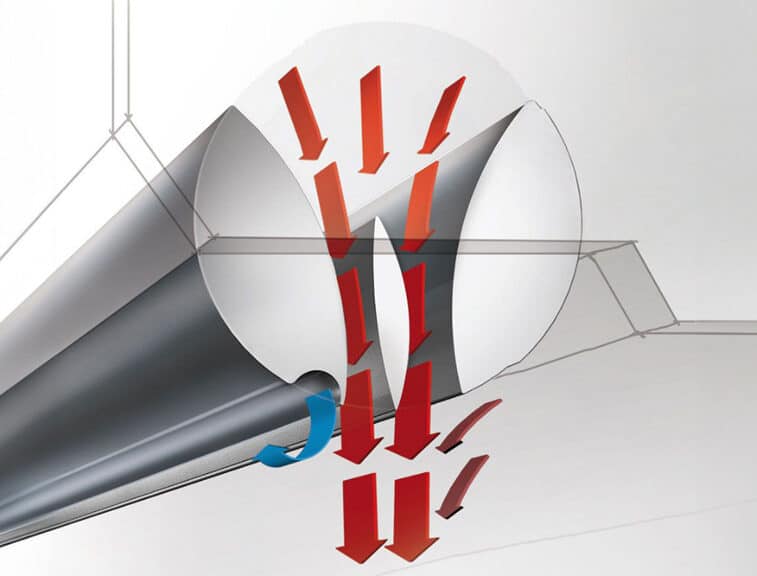

The patented CONVERGO® pressure chamber nozzle system enables precise airflow control with a lower air volume than conventional air curtains with louvred discharge systems.
Quality made in Germany
Teddington air curtains are manufactured in Germany. For us, “Made in Germany” represents a high standard of quality – from precision manufacturing and careful assembly through to the final inspection of every unit.
Effective airflow across the full doorway
For effective separation, the air stream needs to reach the floor across the full width of the doorway.
Technical data
Vertical installation – single or double
Depending on the door width and project requirements, the Charisma can be installed as a single unit or with units positioned on both sides of the doorway.
Single unit
Charisma in vertical installation as a single unit: effective air separation for door widths up to 3.00 metres.
Double unit
Charisma with units installed on both sides of the doorway: effective air separation for door widths up to 6.00 metres.
Downloads
Wide range of accessories
A wide range of accessories is available for our air curtains – from door contacts and thermostats to temperature sensors, valves and mounting accessories. This allows the units to be adapted to different requirements and installation situations.
Door contact
With the door contact, the control system switches on the air curtain as soon as the door is opened. When the door is closed, the air curtain is automatically switched off again.
Solenoid valve
The solenoid valve, controlled by the Teddington controller, automatically shuts off the hot-water supply in summer mode, allowing the air curtain to operate without heating.
Sound insulation
The air curtain can also be fitted with sound-absorbing insulation to further reduce operating noise.
RAL 7011
Iron Grey
RAL 9005
Deep Black
RAL 9006
White Aluminium
RAL 9010
Pure White
Black grey metallic
Metallic fine structure / matt
DB 703
Dark Grey
Individual colours
Teddington air curtains are powder-coated to a high standard and supplied in RAL 9016 Traffic White as standard. Six additional colours are available for a small surcharge, with custom colours available on request.
Application examples
TCX – The latest generation of air curtain controls
The TCX controller makes it easy to control and configure your Teddington air curtain system. With just a few settings, the system can be adapted to suit your individual requirements – from a single air curtain to a complex installation with multiple units.
TCX – flexible control for your Teddington air curtain system.
High process reliability
Flexible integration
Multiple control functions
Control panel with touch display
How can we help with your project?
Tell us about your requirements using the contact form. Fields marked with * are required.
- Air discharge system: CONVERGO® pressure chamber nozzle system
- Air discharge range:
- Mounting position:
- Application:
- Shape:
- Heating options:
- Sound insulation:
- Unit length: Custom unit lengths available
- Fan type: AC
